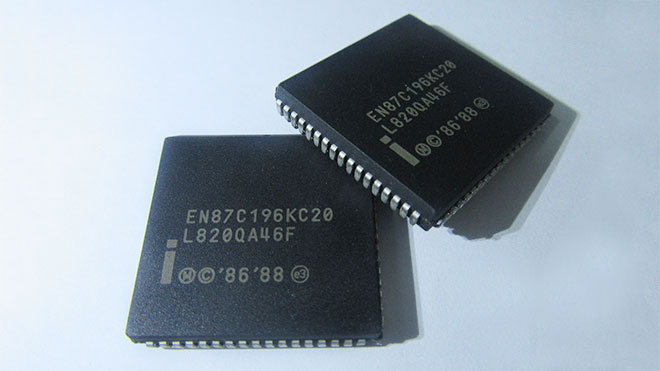

EN87C196KC20
The 80C196KC 16-bit microcontroller is a high performance member of the MCSÉ 96 microcontroller family. The 80C196KC is an enhanced 80C196KB device with 488 bytes RAM, 16 and 20 MHz operation and an optional 16 Kbytes of ROM/OTPR OM. Intel's CHMOS III process provides a high performance processor along with low power consumption.
The 87C196KC is an 80C196KC with 16 Kbytes on-chip OTPROM. The 83C196KC is an 80C196KC with 16 Kbytes factory programmed ROM. In this document, the 80C196KC will refer to all products unless otherwise stated.
Four high-speed capture inputs are provided to record times when events occur. Six high-speed outputs are available for pulse or waveform generation. The high-speed output can also generate four software timers or start an A/D conversion. Events can be based on the timer or up/down counter.
With the commercial (standard) temperature option, operational characteristics are guaranteed over the tem-perature range of 0§C to a70§C. With the extended (Express) temperature range option, operational charac-teristics are guaranteed over the temperature range of b40§C to a85§C. Unless otherwise noted, the specifi-cations are the same for both options.
Series 87C
Packaging Tube
Core Processor MCS 96
Core Size 16-Bit
Speed 20MHz
Connectivity SIO
Peripherals PWM, WDT
Number of I/O 40
Program Memory Size 16KB (16K x 8)
Program Memory Type OTP
RAM Size 488 x 8
Voltage - Supply (Vcc/Vdd) 4.5 V ~ 5.5 V
Data Converters A/D 8x10b
Oscillator Type External
Operating Temperature -40°C ~ 85°C (TA)
Package / Case 68-LCC (J-Lead)
Supplier Device Package 68-PLCC |
